Introducing the 5-light-source plastic color screening cabinet Plastic color cabinet with 5 light sources (color cabinet/light booth) helps quickly compare colors of plastic samples, fabrics, food, leather shoes,... Color matching process of 5 light source color matching chamber The Color matching booths / Color assessment cabinet / Color Light Box
Application of 5 light source plastic color screening cabinet Tilo 5-light-source plastic color light cabinet is used to simulate standard light sources D65, UV, TL84, etc., helping operators easily see color differences between samples and standards when comparing colors. Cabinets are widely used in printing, packaging, textiles, paint, plastic, leather shoes, jewelry,... The light source responds exactly like the C.I.E color system under normal light (Color temperature 65040K-50000K).

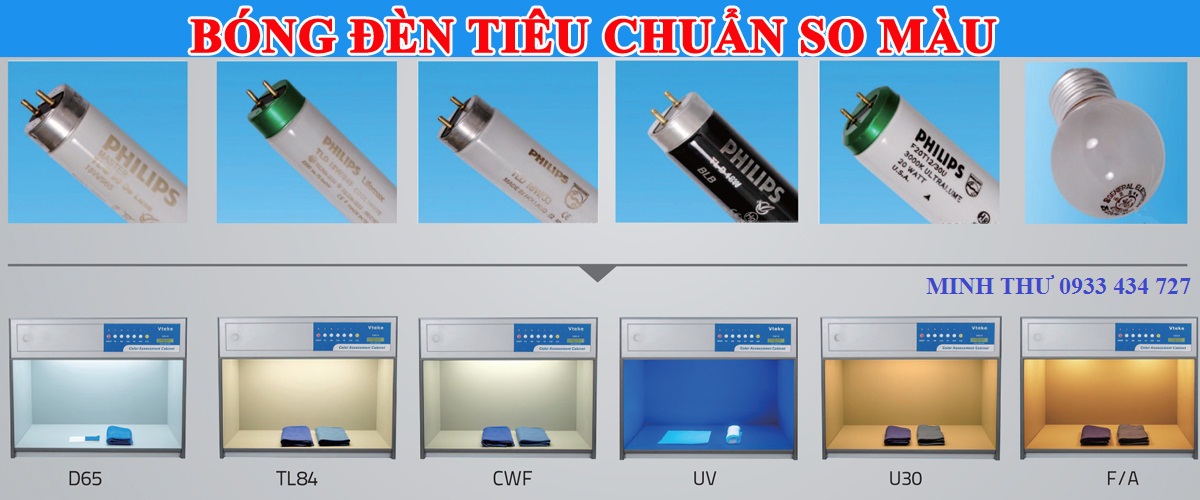

Specifications of the bulb: Light source: + D65- Normal lamp: color temperature 6500K, capacity 20W, 2 lights + F- Standard lamp: color temperature 2700K, capacity 40W, 4 lights + CWF- Fluorescent lamp: color temperature 4150K, capacity 20W, 2 lamps + UV- Ultraviolet lamp: wavelength 365nm, capacity 20W, 1 lamp + TL84- Application for European countries, Japan and China: color temperature 4000K, capacity 18W, 2 lights. – The cabinet meets ASTM D1729, ISO3664, DIN, ANSI and BSI standards.
Technical specifications of Tilo 5-light plastic color cabinet: – No waiting time when turning on/off – Timer: 5 programs display operating time for 5 light sources. After a period of use of 2000 hours, the bulbs should be replaced to ensure the accuracy of the cabinet – The inside of the chamber is painted with Optical-Flat paint, easy to distinguish – Power source: 220W, 50Hz – Chamber size: 71×40.5x57cm – Weight: 32kg Included bulbs:
After an operating time of 2000 hours, the bulb needs to be replaced. Please contact us to order replacement bulbs.
